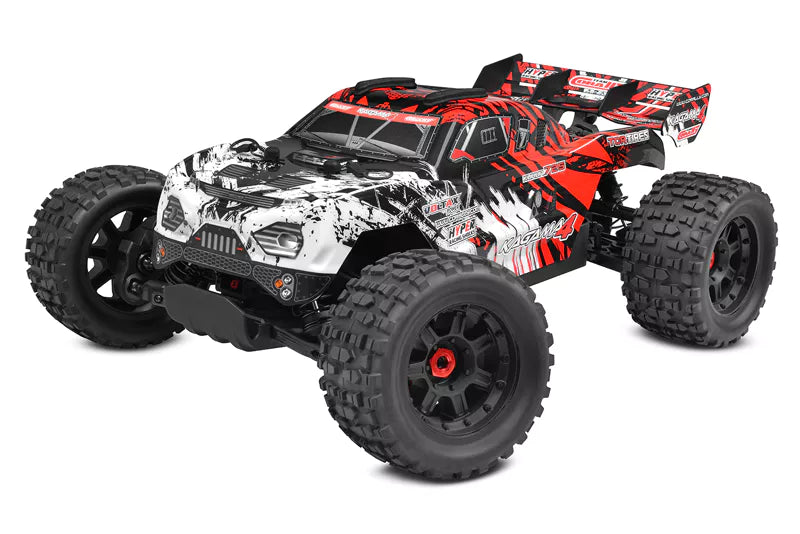

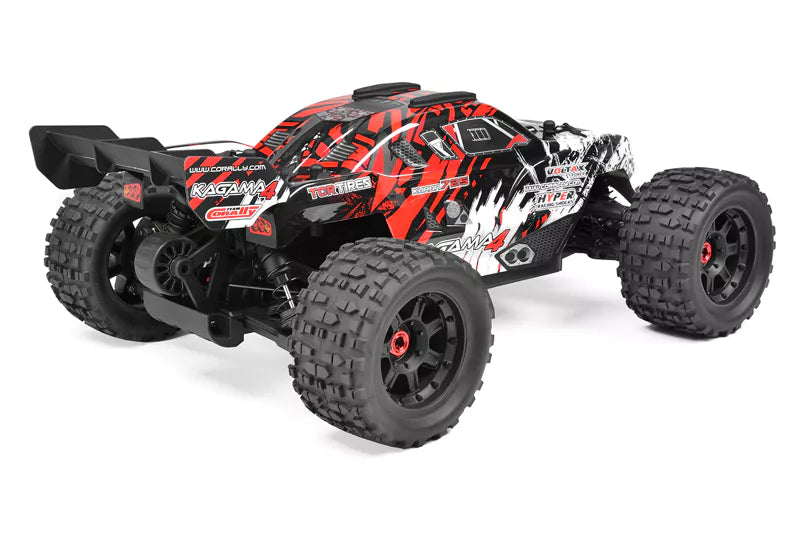

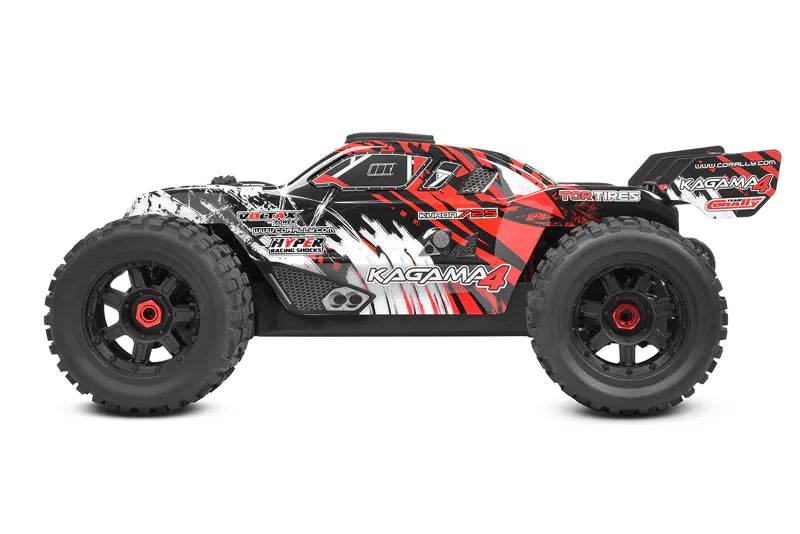

Team Corally - KAGAMA 4 - RTR - Red - Brushless Power 4S - No Battery - No Charger

Car - Dimensions

Model Scale

1/10 Scale

Length (mm)

515

Height (mm)

182

Wheelbase (mm)

327

Track Front (mm)

390

Track Rear (mm)

388

Ground Clearance (mm)

55

Weight (g) - No Battery

4000

Battery Compartment LxWxH (mm)

161x51x50

Shock Dia. ø (mm)

19

Front Shock Length (mm)

106

Rear Shock Length (mm)

130

Rim Dia. ø (mm)

82

Rim Width (mm)

57

Tire Dia. ø (mm)

133

Tire Width (mm)

69

Car - Electronics

Motor

Kuron 725 - 2150KV - 2-4S (Included)

Power Battery

Not Included (See Accessories)

Radio

TC - CT-2S 2.4GHz (Included)

Servo

CR-7225 - 25Kg Torque (Included)

Speed Control

TC - Torox 135 2-4S (Included)

Charger

Not Included (See accessories)

Car - Tech Details

Wheel Adapter

17 mm Hex Adapter

Bearings

Full Ball Bearings - Rubber Shielded

Differentials

3x Gear Differentials

Front Suspension Type

Independent - Pillow Ball Type

Rear Suspension Type

Independent - Wishbones

Gear Pitch

MOD 1.0

Spur Gear (T)

52

Motor Pinion (T)

13

Internal Drive Ratio

3.31

Overall Drive Ratio

13,23

Shock Type

Oil Filled Composite Shocks - Coil Over Springs

Car - Materials

Bevel Gear - Pinion

Steel - Powder Metallurgy Casting

Chassis

3mm - Aluminium 6061-T6 - Color Anodised

Chassis Braces

Molded Composite

Differential Center

Molded Composite

Differential FR - RE

Molded Composite Case

Outdrives

Hardened Steel

Lower Arm Holders

4mm 6061-T6 Aluminium + Composite

Shock Tower - Front

Molded Composite Shock Tower

Shock Tower - Rear

Molded Composite Shock Tower

Motor pinion

Precision CNC Machined - Hardened Steel

Spur Gear

Precision CNC Machined - Hardened Steel

Bodyshell

Polycarbonate - Painted, Decalled and Trimmed
