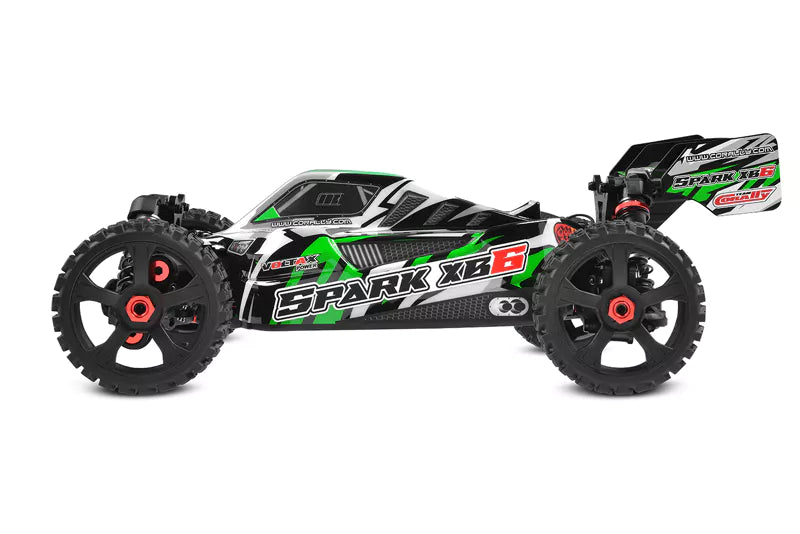

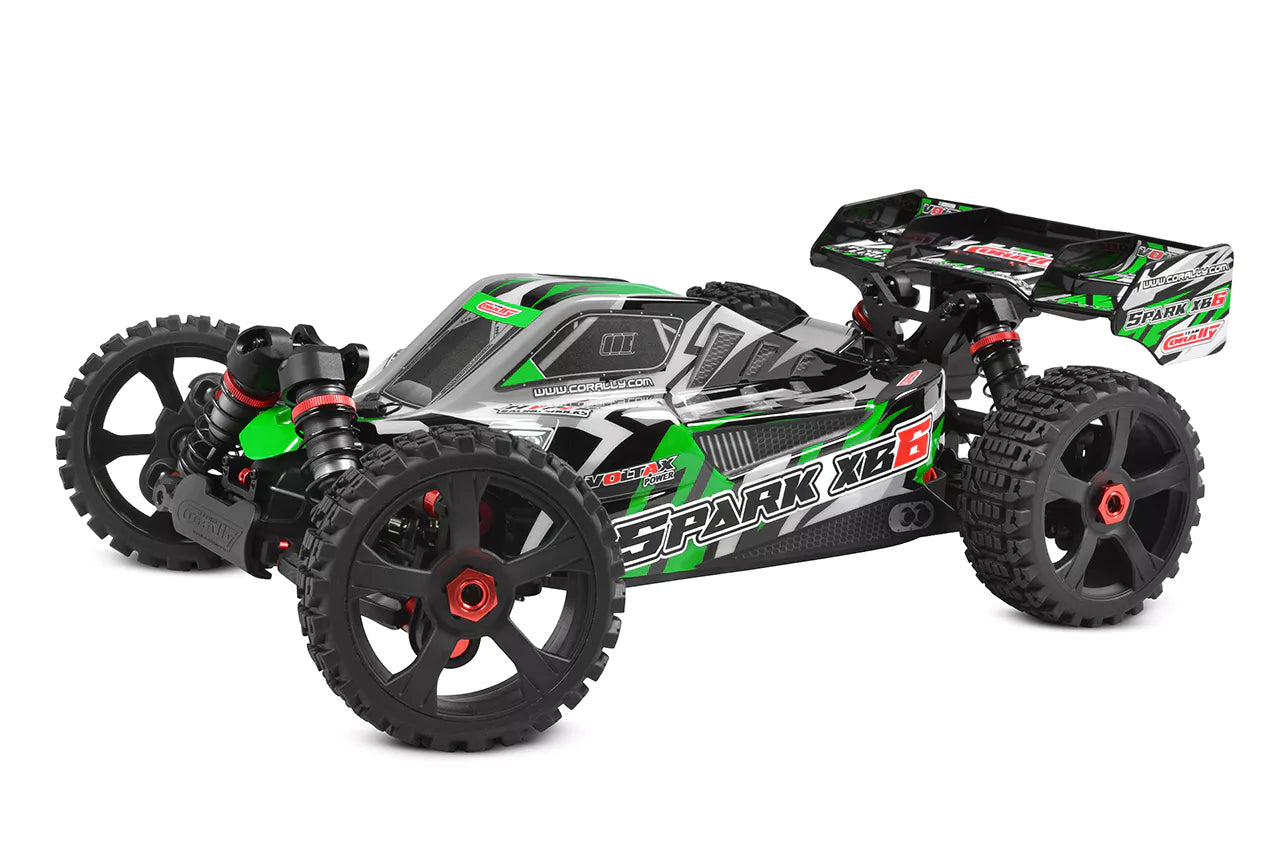

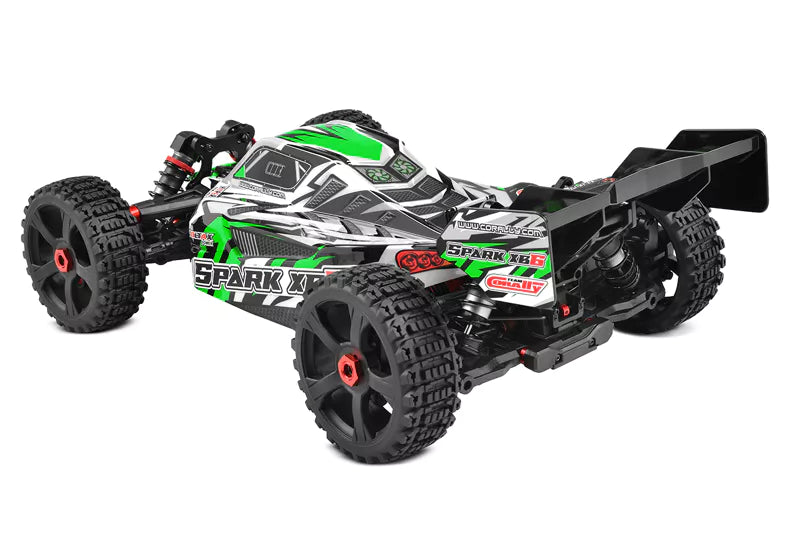

SPARK – The First True 1:8 Bash Buggy
Experience a revolution with the first true 1:8 scale buggy designed specifically for bashing – the Team Corally Spark
Car - Model Type
- Car Type
- Buggy
- Age Requirement
- Age 14+
- Skill Level
- Intermediate
- Completion Level
- RTR - Ready To Run
- Assembly Time
- No Assembly Required
- Drive Train
- 4WD - Shaft Driven
- Power System
-
- Motor Type
- Brushless
- Recommended Environment
- All Terrain
- Top Speed (km/h)
- 110,00
Car - Dimensions
- Model Scale
- 1/8 Scale
- Length (mm)
- 495,00
- Height (mm)
- 175,00
- Wheelbase (mm)
- 327,00
- Track Front (mm)
- 308,00
- Track Rear (mm)
- 308,00
- Ground Clearance (mm)
- 58,00
- Weight (g) - No Battery
- 3650,00
- Battery Compartment LxWxH (mm)
- 161x51x49
- Shock Dia. ø (mm)
- 19,00
- Front Shock Length (mm)
- 107,00
- Rear Shock Length (mm)
- 129,00
- Rim Dia. ø (mm)
- 90,00
- Rim Width (mm)
- 42,00
- Tire Dia. ø (mm)
- 116,00
- Tire Width (mm)
- 43,00
Car - Electronics
- Motor
- Kuron 825 - 2050KV - 2-6S (Included)
- Power Battery
- Not Included (See Accessories)
- Radio
- TC - CT-2R 2.4GHz (Included)
- Servo
- CR-7225 - 25Kg Torque (Included)
- Speed Control
- TC - Torox 185 ESC 3-6S (Included)
- Charger
- Not Included (See accessories)
Car - Tech Details
- Wheel Adapter
- 17 mm Hex Adapter
- Bearings
- Full Ball Bearings - Rubber Shielded
- Differentials
- 3x Gear Differentials
- Front Suspension Type
- Independent - Pillow Ball Type
- Rear Suspension Type
- Independent - Wishbones
- Gear Pitch
- MOD 1.0
- Spur Gear (T)
- 46
- Motor Pinion (T)
- 13
- Internal Drive Ratio
- 3,31
- Overall Drive Ratio
- 11,71
- Shock Type
- Oil Filled "Big Bore" Aluminium Shocks - Coil Over Springs
Car - Materials
- Bevel Gear - Pinion
- Precision CNC Machined - Hardened Steel
- Chassis
- 3mm - Aluminium 6061-T6 - Color Anodised
- Chassis Braces
- Molded Composite + Aluminium Bar
- Differential Center
- Hybrid Case - 6065-T6 Aluminium + Steel
- Differential FR - RE
- Molded Composite Case
- Outdrives
- Racing S2 Springsteel - Hardened
- Lower Arm Holders
- 4mm 6061-T6 Aluminium + Composite
- Shock Tower - Front
- 5mm - Aluminium 6061-T6 - Color Anodised
- Shock Tower - Rear
- 5mm - Aluminium 6061-T6 - Color Anodised
- Motor pinion
- Precision CNC Machined - Hardened Steel
- Spur Gear
- Precision CNC Machined - Hardened Steel
- Bodyshell
- Polycarbonate - Painted, Decalled and Trimmed
